Resistance furnace

Current position：Home > Products > Resistance furnace

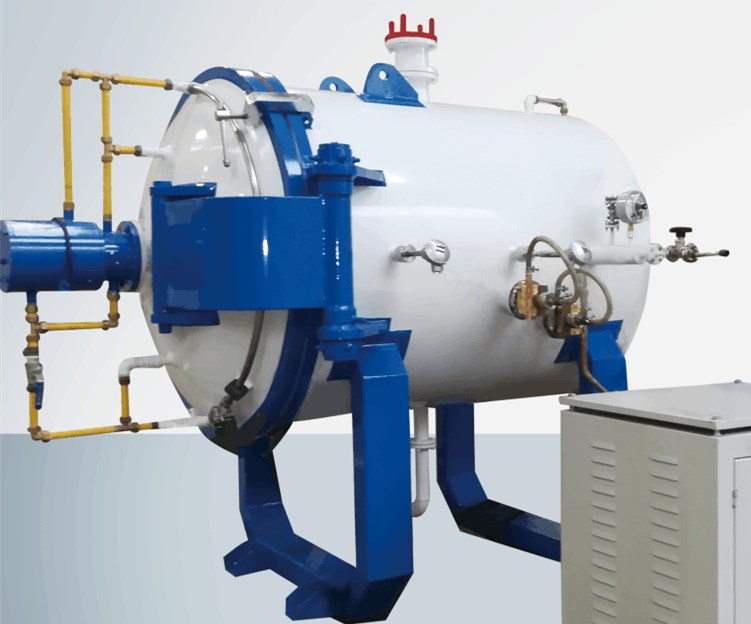

fast cooling vacuum carbonization furnace

The equipment is batch type resistance furnace, mainly used in the heating treatment of PI film , graphite and carbon material.

Consult now

Introduction

The equipment is batch type resistance furnace, mainly used in the heating treatment of PI film , graphite and carbon material.

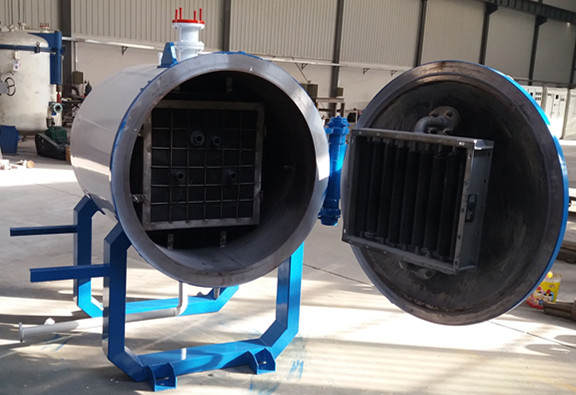

The picture of the fast cooling furnace:

1_1

Model Parameter		Lab usage	Production usage
Model Parameter		NTI-KLL-54W	NTI-KLL-243W	NTI-KLL-300W	NTI-KLL-400W	NTI-KLL-720W	NTI-KLL-720+NW
Working size	mm	300×300×600	450×450×1200	500×500×1200	500×500×1600	600×600×2000	（600-800）×（600-800）×（2000-4000）
Control process		Thyristor control
Heating type	/	Resistance heating
Cooling device		Fan
Cooling time		4h from 1400-200℃
HT zone capacity	L	54	243	300	400	720	720+N
Loading weight	g	HT zone capacity × density (g/cm3)×1000 Remark：1L=1000cm3
Ultimate vacuum	Pa	20
IF power	Kw	50/100	105/210	120/240	135/270	189/378	189-500/378-1000
Heating zone	Zone	1	3	3	3	3	3-6
Max. working temperature	℃	2400	2400	2400	2400	2400	2400
Usual working temperature	℃	1600/2300	1600/2300	1600/2300	1600/2300	1600/2300	1600/2300
Temperature unifomity	℃	±5	±5	±5	±5	±5	±10
Working environment	/	Vacuum or Ar, N2 atmosphere protection( micro positive pressure)

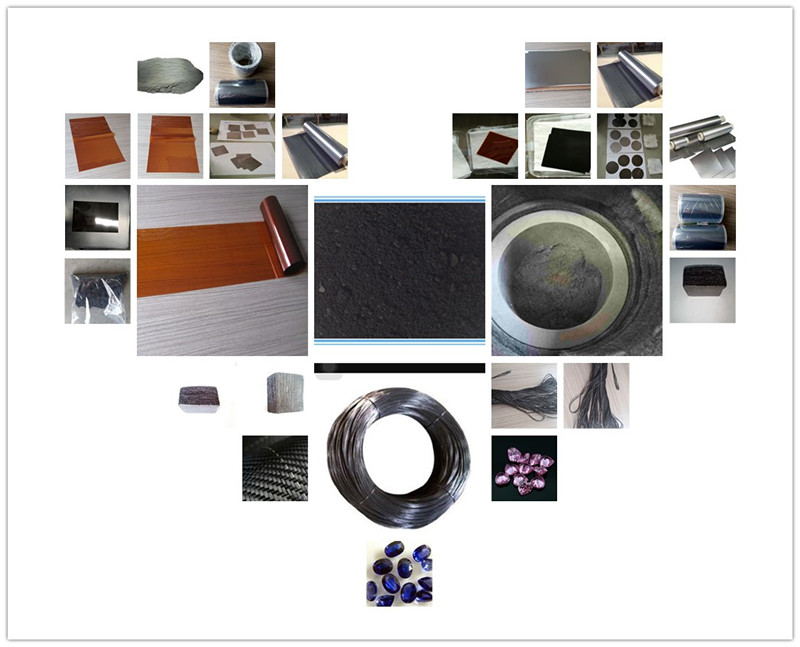

The raw materials suitable for heating:

carbon material

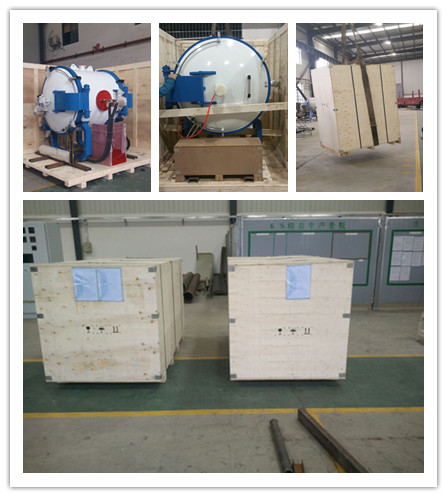

The packing mode:

Previous：Carbon material vacuum carboniz..

Next：PI film heat treatment resistan..
